View Instances - ScitiX

Go to the Compute Engine management page.
The instance summary table displays the following fields:

Stats	Instructions	Example
Instance Id	Unique Instance ID	i-m5skalja52
Name	Instance Name, which is also the hostname during OS initialization	demo
Status	Instance Running Status	Creating\|Running\|Stopped
OS	Operating System Type	Ubuntu、CentOS
Instance Type	Instance Type	ces.g20-3.8xlarge
vCPU	Instance CPU Logical Core Resources	192vCPU
Memory	Instance Memory Resources	2048GiB
GPU	Instance GPU Card Resources	8*NVIDIA H100 80GB SXM
IP	Instance IP Address	10.208.55.2
VPC	VPC Network ID of the Instance	vpc-vlni6t6b
Created Time	Instance Creation Time	2024-07-07 13:03:24
Billing Method	Instance Payment Type	Subscription\|Pay-as-you-go
Creator	Instance Creator	swhao
Actions	Supported Instance Operation Types	Start\|Restart\|Stop\|Delete

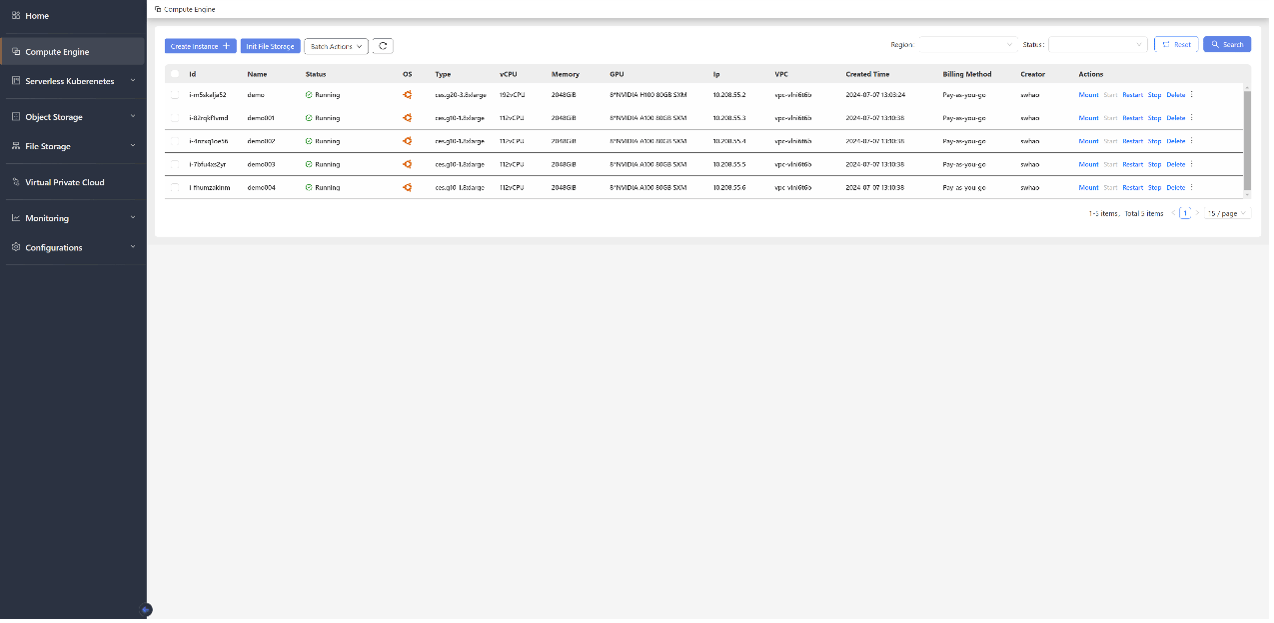

As shown in the figure:

Procedure

Instance types and performance

product type	instance name	spec
CES(Bare Metal)	ces.g11-7.8xlarge	CPU：Intel 8358(2.6Ghz, 32 Core)* 2 MEM：2TB Disk：2960GB (raid 1) GPU：8NVIDIA A100-pcie-80G Network：25Gbps2RDMA: 2200Gbps
	ces.g20-3.8xlarge	CPU: Intel 8468(2.1Ghz, 48Core) * 2 MEM: 2T Disk: 960G 2 (raid 1) GPU: H100-nvlink-80G8 Network: 25Gbps2 RDMA: NDR 400Gbps 4
	ces.g21-3.8xlarge	CPU:Intel 8558P(48C 2.7GHz)2 MEM: 64G DDR532 DISK: SSD960G2（raid1） DISK：3.84T NVMe SSD 4 GPU: H200_nvlink-141G 8 NEWWORK: 25Gbps2RDMA: NDR 400Gbps * 8
	ces.c23-2	CPU:Intel 6430(2.1Ghz，32 Core) * 2 MEM: 64G DDR532 DISK: SSD960G2（raid1） Network: 25Gbps2RDMA: HDR 200Gbps 2
	ces.g14-2.8xlarge	CPU：Intel 8358（2.6Ghz, 32 Core）* 2 MEM：2TB Disk：2960GB (raid 1) GPU：NVIDIA A100-nvlink-80G 8 NetWork：25Gbps2RDMA: HDR 200Gbps 2
VIM Instance	ces.vc23-2.2xlarge	8 vCPU, 128G Memory, 200G Disk
	ces.vc23-2.4xlarge	16 CPU, 256G Memory, 200G Disk
	ces.vc23-2.8xlarge	32 CPU, 512G Memory, 200G Disk

CPU Benchmark

CPU bare metal: ces.c23-2

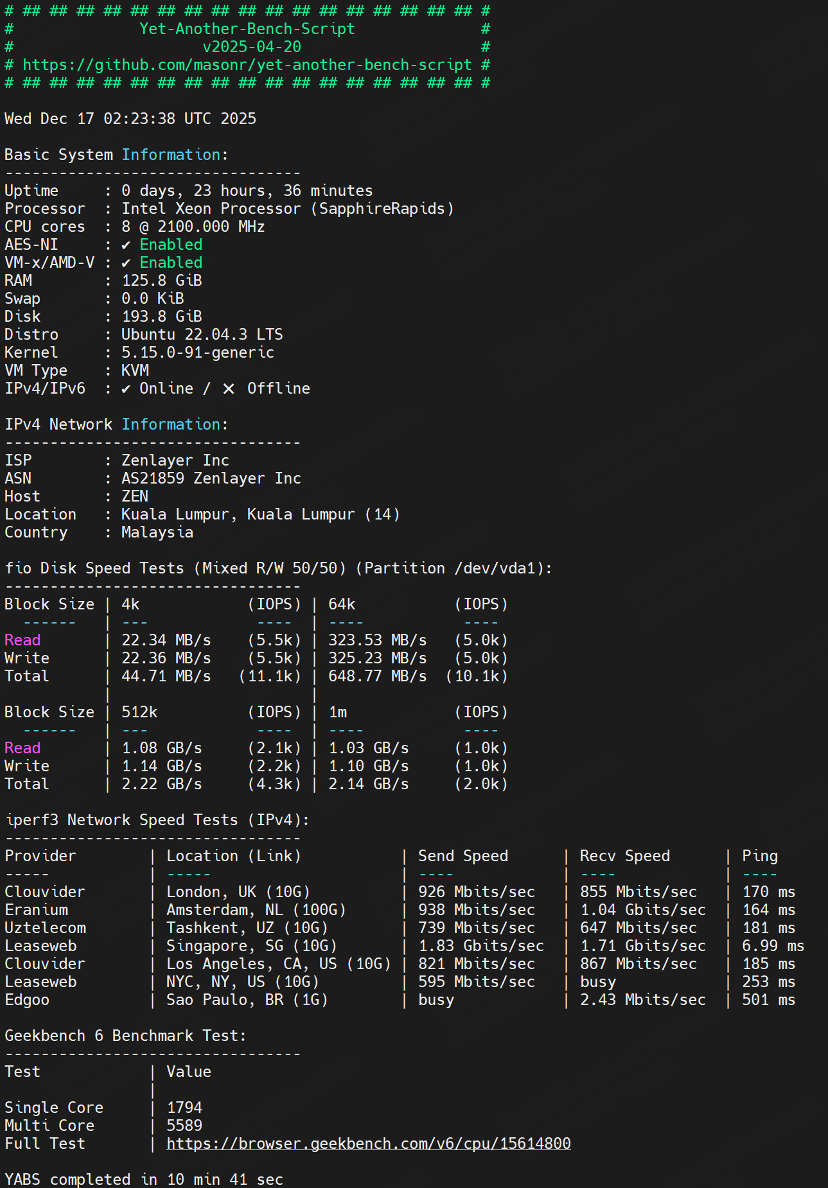

VM Instance: taking the instance ces.vc23-2.2xlarge as an example, the system benchmark test is as follows。
Other types of instances will only differ in terms of the number of CPU cores and the size of memory.

What are the diferences between bare metal and vm instances?

features	vm	bare mental
ssd disk	no	yes
rdma network	no	yes
whether hyper-threading can be disabled	no	yes
