Configure Registry Webhook

A webhook is an event notification mechanism for the container image registry. After you configure a webhook, when an artifact in a project triggers a specified event, the system sends event information to the target address via HTTP POST. You can use webhooks to trigger CI/CD pipelines, synchronize the status of external systems, record audit information, or send notifications.

​

Pre-Action Confirmation

• A callback URL (Endpoint) ready to receive HTTP POST requests has been prepared.
• If the callback service requires authentication, authentication headers for request validation have been prepared.

​

Create Webhook

1. Log in to the GPU Cloud console.
2. Go to STORAGE > Registry and select the region where the project is located.
3. On the Projects tab, click the name of the target project.
4. In the project sidebar, go to the Webhook page and click Create Webhook.
5. Fill in the Webhook configuration.

   Configuration Item	Description
   Name	Enter a name that makes it easy to identify the receiving system or purpose.
   Description	Record the callback purpose as needed, for example, image synchronization, audit logging, or external notifications.
   Event Type	Select the events that the downstream system needs to process. Select only the necessary events to prevent external systems from receiving irrelevant notifications.
   Target Address	Enter the receiving address of the callback service, and ensure that the service can receive HTTP POST requests sent by the registry.
   Authentication Header	If the callback service requires requests to include authentication headers, enter the relevant information. Do not include keys in the description or other public content.
   Certificate Verification	When using an HTTPS callback address, choose whether to verify the certificate based on the certificate configuration of the receiving service.

   Select the Event Type from the table below. Callback requests sent to the target URL vary by event and typically include the event type, occurrence time, operator, and information about the relevant repository or artifact.

   Event	Event Type	Description	Main Callback Content
   Push artifact to repository	PUSH_ARTIFACT	Triggered when an artifact is pushed to a repository in a project.	Namespace, repository, resource URL, tag, manifest digest, artifact name, push time, operator.
   Pull artifact from repository	PULL_ARTIFACT	Triggered when an artifact is pulled.	Namespace, repository, manifest digest, artifact name, pull time, operator.
   Delete artifact from repository	DELETE_ARTIFACT	Triggered when an artifact is deleted.	Namespace, repository, manifest digest, artifact name, artifact size, deletion time, operator.
   Project quota exceeded	QUOTA_EXCEED	Triggered when the project quota is exceeded.	Namespace, repository, tag, manifest digest, artifact name, push time, operator.
   Project quota reaches warning threshold	QUOTA_WARNING	Triggered when the project quota reaches the warning threshold.	Namespace, repository, tag, manifest digest, artifact name, push time, operator.
   Artifact scanning completed	SCANNING_COMPLETED	Triggered when an artifact scanning task is completed. This event indicates that the scanning process has finished; it does not mean that the artifact has no vulnerabilities.	Namespace, repository, tag, artifact name, number of vulnerabilities, scan completion time, user who performed the scan.
   Artifact scanning stopped	SCANNING_STOPPED	Triggered when an artifact scanning task is stopped or aborted. This event does not indicate that the scan was completed successfully.	Namespace, repository, tag, artifact name, scan status.
   Artifact scanning failed	SCANNING_FAILED	Triggered when an artifact scanning task fails. This event indicates that the scan did not complete normally.	Namespace, repository, tag, artifact name, error message, user who performed the scan.
   Artifact replication status changed	REPLICATION	Triggered when the status of an artifact replication task changes.	Namespace, repository, tag, manifest digest, artifact name, replication status, operator.
   Artifact tag retention completed	TAG_RETENTION	Triggered when an artifact retention policy has finished executing.	Namespace, repository, retention count, retention rules, deleted artifact results.

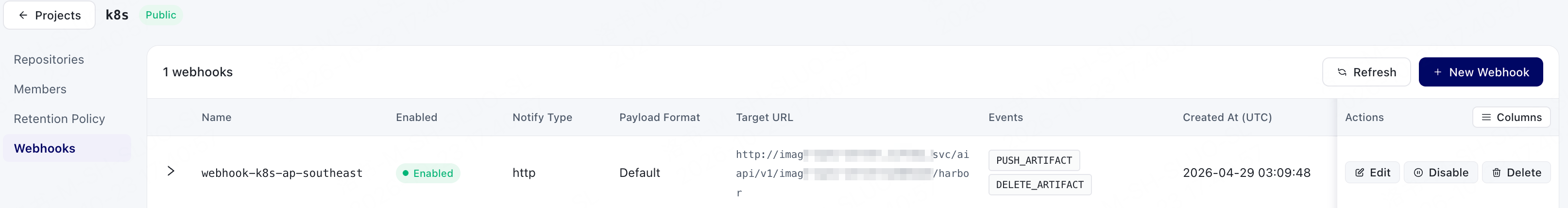

6. Save the configuration, and confirm on the Webhook page that the webhook has been created.

​

View Delivery Records

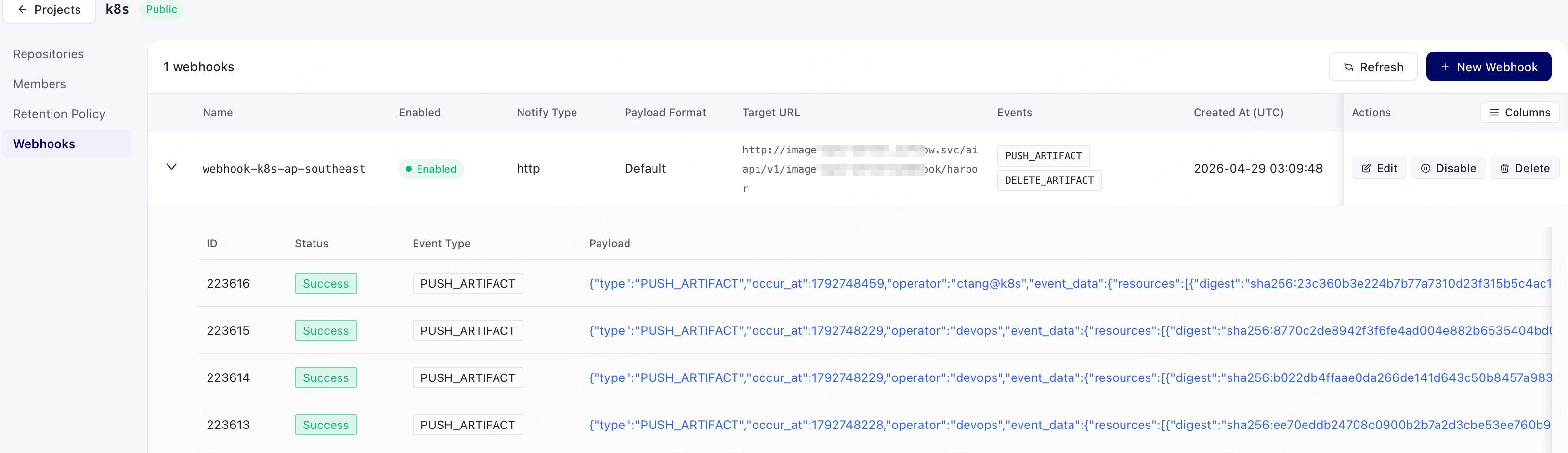

1. On the Webhook page, locate the target webhook and click the expand icon.
2. View delivery records. Payload is the event content that the webhook actually sends to the target URL. If the external system does not receive the callback, first check whether the webhook is enabled, whether the event type matches, whether the target URL is available, and whether the receiving service can process the current event content.

​

Update or Disable a Webhook

• To modify the destination URL, event type, or authentication information, click Edit in the Actions column for the target webhook, make the changes, and save them.
• To pause event notifications, click Disable. Once disabled, the webhook no longer delivers events to the destination URL.
• When the webhook is no longer needed, click Delete and follow the prompts to confirm. Before deleting it, ensure that downstream systems no longer depend on the corresponding event notifications.
